Lathe Machine: Definition, Parts, Types, Operation, Specification, Advantages, Application [Notes & PDF]

Lathe Machine is one of the oldest machine tools in the production machine. This Machine is also known as the “mother of all machines”.

Today we will study the Definitions, Parts, Types, Operations, Specifications, advantages, disadvantages, and applications of the Lathe machine.

Note: At the end of article you can download whole document in PDF format easily.

Let’s start by Introduction first,

Lathe Machine Introduction:

The lathe machine is probably the oldest machine tool known to mankind. Its first use date back to 1300 BC in Egypt. The first lathe was a simple Lathe which is now called a two-person lathe. In this one person would turn the wood workpiece using rope and the other person would shape the workpiece using a sharp tool.

This design was further improved by the Ancient Romans who added the turning bow and lather the paddle (as there in the sewing machine) was added.

Further during the industrial revolution Steam Engines and water wheels were attached to the Lathe to turn the workpiece to a higher speed which made the work faster and easier.

Then, In 1950 servo mechanism was used to control the lathe machine. From this crude begging and over a period of more than two centuries, the modern engine lathe has evolved.

Now we have the most advanced form of the Lathe which is the CNC Lathe. HENRY MAUDSLAY, a British Engineer is considered the inventor of a lathe.

Lathe Machine Definition:

A lathe machine is a machine tool that removes the undesired material from a rotating workpiece in the form of chips with the help of a tool that is traversed across the work and can be fed deep into the work.

It is one of the most versatile and widely used machine tools all over the world.

Lathe Machine
Lathe Machine Definition

This is also known as the ‘Mother of all Machines’. Nowadays, Lathe Machine has become a general-purpose machine tool, employed in production and repair work, because it permits a large variety of operations to be performed on it.

Lathe Machine Parts:

The Lathe Machine consists of the following Main Parts:

  • Bed
  • Headstock
  • Tailstock
  • Carriage
  • Saddle
  • Cross Slide
  • Compound rest
  • Tool Post
  • Apron
  • Chuck
  • Feed rod
  • Lead Screw
  • Spindle

I have also shown the different parts in the Lathe Machine diagram.

Different Parts of Lathe Machine
Lathe Machine Parts

let’s start from Bed first,


The bed of the lathe machine is the base on which all the other parts of the lathe are mounted. The bed is made from cast iron or nickel cast iron alloy and is supported on broad box-section columns.

Its upper surface is either scraped or grounded and the guiding and sliding surfaces are provided.

The bed consists of heavy metal slides running lengthwise, with ways or v’s forced upon them. It is rigidly supported by cross griths.

The three major units mounted on a bed are:

  1. Headstock.
  2. Tailstock.
  3. Carriage.

The scrapped or the ground guiding along with the sliding surfaces on the lathe bed ensure the accuracy of the alignment of these three units.


The headstock is present on the left end of the bed. The main function of the headstock is to transmit power to the different parts of the lathe.

It supports the main spindle in the bearing and aligns it properly. It also houses a necessary transmission mechanism with speed-changing levers to obtain different speeds.

Accessories mounted on the headstock spindle are:

  1. Three jaw chuck.
  2. Four jaw chuck.
  3. Lathe center and lathe dog.
  4. Collet chuck.
  5. Face Plate.
  6. Magnetic chuck.


The tailstock is a movable casting located opposite the headstock on the way of the bed.

The basic function of the tailstock is:

  1. To support the other end of the work when being machined.
  2. To hold a tool for performing operations like drilling, reaming, tapping, etc.

It consists of the dead centers, the adjusting screws, and the handwheel. The body of the tailstock is adjustable on the base which is mounted on the guideways of the bed and can be moved.


The carriage is located between the headstock and tailstock. The basic function of the carriage is to support, guide, and feed the tool against the job during operation.

It consists of 5 main parts:

  • Saddle
  • Cross Slide
  • Compound rest
  • Tool Post
  • Apron


It is an H-shaped casting mounted on the top of the lathe ways. It provides support to cross-slide, compound rest, and tool post.

Cross Slide:

Cross slide is provided with a female dovetail on one side and assembled on the top of the saddle with its male dovetail.

The top surface of the cross slide is provided with T slots to enable the fixing of the rear tool post or coolant attachment. The carriage basically provides a mounted or automatic cross-movement for the cutting tool.

Compound Rest:

Compound rest is present on the top of the cross slide. It supports the tool post and cutting tool in its various positions. Compound rest is necessary for turning angles and boring short tapers and forms on forming tools.

Tool Post:

The tool post is mounted on the compound rest. It is used to hold various cutting tool holders. The holders rest on a wedge which is shaped on the bottom to fit into a concave-shaped ring (segmental type),

Which permits the height of the cutting edge to be adjusted by tilting the tool. It is fixed on the top slide. It gets its movement by the movement of the saddle, cross slide, and top slide.

The three types of tool posts which are commonly used are:

  • Ring and rocker tool post: It consists of a circular tool post with a slot for accommodating the tool or tool holder.
  • Quick change tool post
  • Squarehead tool post.


The Apron is fastened to the saddle and hangs over the front of the bed. Apron consists of the gears and clutches for transmitting motion from the feed rod to the carriage, and the split nut which engages with the lead screw during cutting threads.

Two types of Apron are extensively used:

  • Incorporating drop worm mechanism.
  • Friction or dog clutches.


Chuck is basically used to hold the workpiece, particularly of short length and large diameter or of irregular shape which can’t be conveniently mounted between centers. It can be attached to the lathe by screwing on the spindle nose.

Four different types of chucks are most commonly used in Lathe:

  • Independent or four-jaw chuck
  • Three-jaw or universal chuck
  • Collect chuck and
  • Magnetic Chuck

Independent or four-jaw chuck:

It is used for irregular shapes, rough castings of square or octagonal in such jobs, where a hole is to be positioned off the center. It consists of four jaws and each jaw is independently actuated and adjusted by a key for holding the job.

Three jaw or universal chuck:

It consists of three jaws that move simultaneously by turning a key and the workpiece automatically remains in the center of the chuck opening. It is used for holding a round, hexagonal bar or other symmetric work.

Collet chuck:

It is mostly used in the places where production work is required such as in Capstan Lathe or automats. It is used for holding bars of small sizes (below 63mm).

Magnetic chuck:

They are of permanent magnet type or electrically operated. In Lathe, it does not have widespread use.

Feed Rod:

The feed rod is a power transmission mechanism used for precise linear movement of the carriage along the longitudinal axis of the lathe. In some lathe machines instead of feed rods lead screws are used.

Lead screw:

The lead screw is used mostly in the case when the threading operation is to be performed on a lathe. As we know threading operation requires rotational movement of the job (workpiece) and the linear movement of the tool (tool post).

So rotation of the job is obtained by the chuck and the desired linear motion of the tool post (as the lead screw drives the saddle when it is engaged) is provided with the help of a lead screw.

Lathe Machine Working Principle:

A Lathe works on the principle of rotating the workpiece and a fixed cutting tool.

The workpiece is held between two rigid and strong supports called a center in a chuck or in a faceplate which revolves.

Lathe removes the undesired material from a rotating workpiece in the form of chips with the help of a tool that is transverse across the work and can be fed deep in the work.

The main function of the lathe is to remove the metal from a job to give it the required shape and size.

The normal cutting operations are performed with the cutting tool fed either parallel or at right angles to the axis of the work.

The cutting tool can be fed at an angle relative to the axis of the work for machining tapers and angles.

Products made by Lathe Machine:

A variety of products can be made from the lathe machine and that are Nuts, bolts, pistons, ram, pump parts, electric motor parts, sleeves, Aircraft parts, gun barrels, candlesticks, train parts, cue sticks, wooden bowls, baseball bat, crankshaft and many more things.

Lathe Machine Types:

There are 10 different types of Lathe Machines and those are:

  • Engine Lathe or Center Lathe
  • Speed Lathe
  • Turret lathe
  • Capstan Lathe
  • Toolroom Lathe
  • Bench Lathe
  • Gap bed lathe
  • Hollow spindle Lathe
  • Vertical Turret Lathe and
  • CNC Lathe Machine.

Engine Lathe or Center Lathe Machine:

The engine lathe is the most important tool in the Lathe family and by far the most widely used type of Lathe machine.

Its name is derived from the fact that early machine tools were driven by separate Engines or central engines with overhead belts and shafts.

The operations which can be performed by the Engine Lathe machine are Turning, facing, grooving, knurling, threading, and many more operations that can be performed by it.

Engine lathe consists of headstock, Tailstock, bed, saddle, carriage, and other parts.

  • The headstock encloses the spindle and motor. It also consists of the gear and pulleys, which are used to change the gear speed and the feed rate.
  • The tailstock is provided to facilitate holding the work between centers and permit the use of tools like drills, taps, etc.
  • The cutting tool can be fed both in the cross and longitudinal direction with reference to the lathe axis with the help of the feed rod and the lead screw.

The Engine Lathe is available in sizes to handle 1m diameter jobs and 1 to 4m long.

Engine Lathe Machine
Engine Lathe Machine

Turret Lathe Machine:

It is a production machine that is used for the production of products on a large scale. It basically handles heavy-duty workpieces. The distinguishing feature of this type of lathe is that the Tailstock is replaced by a hexagonal Turret.

In this, several tools are set up on a revolving turret to facilitate performing a large number of operations on a job with minimum wastage of time.

The turret usually accommodates 6 tools for different operations like drilling, countersinking, reaming, tapping, etc, which can be brought into successively working positions by indexing the turret. The turret lathe is basically used for repetitive batch production.

Turret Lathe Machine

Capstan Lathe Machine:

It is similar to the Turret lathe. Used for the mass production of the light-duty workpiece. It incorporates a capstan slide which moves on the auxiliary slide and can be clamped in any position.

This is best suited for the production of small parts because of its lightweight and short stroke of capstan slide.

Capstan Lathe Machine Diagram
Capstan Lathe Machine Diagram

Speed Lathe Machine:

This is the simplest form of the lathe and consists of a simple Headstock, tailstock, and a tool post. Having no gearbox, lead screw, or carriage. Very high speed of the headstock spindle. The speed of the spindle ranges from 1200 to 3600 rpm.

Tools are hand-operated. Cone-pulley is the only source provided for speed variation of the spindle.

Speed Lathes are intensively used in woodturning, metal spinning, and polishing operation.

Diagram of Speed Lathe

Tool Room lathe Machine:

Tool Room lathe is a modern engine lathe that is equipped with all the necessary accessories for accurate tool room work. It is best suited for the production of small tools, dies, gauges, etc.

It is a geared head-driven machine with a considerable range in spindle speed and feeds. Its speed can range from very low to a very high speed of up to 2500 rpm.

Diagram of tool lathe Machine
Diagram of tool lathe Machine

Bench Lathe Machine:

Bench Lathe machine is a type of small lathe machine that has all the parts of the engine Lathe and speed lathe.

It is mounted on a workbench and is used for doing small precision and light jobs.

Special purpose Lathe machine Machine:

A special purpose lathe machine is used for performing specific special tasks which cannot be performed by an ordinary lathe. Some type of special-purpose Lathe are as follow:

Gap bed lathe Machine:

In a gap bed lathe, a gap is provided over the bed near the headstock to handle the job having flanges or some other protruding parts.

Mostly a removable portion is provided in the bed so that when it is not required it can be inserted.

Wheel lathe Machine:

Wheel lathes are special-purpose lathe machine that is used for finishing the journals and turning the tread on locomotive wheels.

T- Lathe machine Machine:

T-Lathe machine is a type of machine that has a T-shaped bed and is used in the aerospace industry for the machining of the rotors of the jet engine.

Automatic Lathe Machine:

As the name suggests automatic Lathe machine is a machine in which the complete work and the job handling movements required for the completion of the job are done automatically.

They are heavy-duty, mass-production, and high-speed machines.

CNC Lathe Machine:

Computer Numeric Control (CNC) is the most advanced form of lathe machine. CNC lathe machine produces the most accurate products as compared to the other type of lathe machine.

In this machine, programs are being fed to the computer system which controls the overall working of the lathe.

It is used for large-scale production. Semi-skilled workers are required for the operation of this machine.

Diagram of CNC Lathe Machine
Diagram of CNC Lathe Machine

Different Operations Performed on Lathe Machine:

The following different types of Lathe Machine Operation are:

  • Turning Operation
  • Tapered Turning
  • Shoulder Turning
  • Facing Operation
  • Thread cutting operation
  • Parting Operation
  • Chamfering Operation
  • Knurling Operation
  • Drilling Operation
  • Boring Operation
  • Counter Boring Operation
  • Countersinking Operation and
  • Reaming Operation

Let’s start discussing them one by one:

Turning Operation:

Turning is the most common operation performed on the lathe. Turning is a machining operation in which the diameter of the workpiece is reduced by removing the excess material from the outer diameter of the job (workpiece) which is mostly cylindrical or conical in shape.

Turning operation results in a good surface finish of the metal.

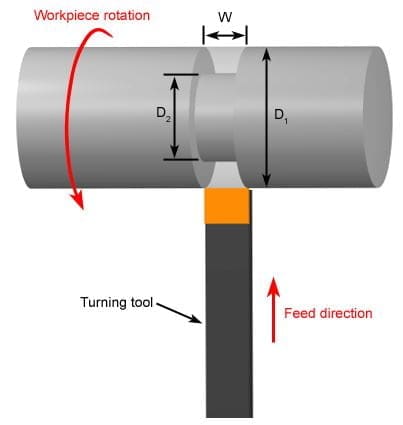

Turning Operation
Turning Operation

The various type of turning operations are:

Tapered Turning Operation:

Tapered Turning is a machining process in which the cylindrical jobs are machined to produce a conical surface. In taper Turning the tapered component will be produced.

Taper turning Operation
Taper turning Operation

The various methods used for Taper Turning are:

  1. Compound Rest Method
  2. Tailstock Method.
  3. Taper Turning Attachment method
  4. Form tool Method.

Let’s discuss each method in brief:

Taper Turning Attachment Method:

In the taper turning attachment method, the slideways are tilted by an angle equal to the taper angle of the component so that the saddle is automatically tilted and when the saddle is moving on the slideways it produces a tapered component.


  1. It can be used for both internal, and external operations.
  2. Up to 0.1-degree accuracy can be produced.
  3. The maximum taper angle which can be produced is 8 degrees.
  4. The maximum taper length of the component in one sitting is 235mm.

Compound Rest Method:

In the compound Rest Method, the compound rest is swiveled by an angle equal to the required taper angle on the component. Any taper angle can be produced by this method and both internal and external taper turning operations can be performed by this method.

Tailstock method:

The method is used for producing only external tapers. In this method, the tailstock is moved from its middle position to one side of the bed, which makes the workpiece tilted with respect to the lathe axis and feed.

Thus, when the tool moves it cuts the workpiece at an angle to the axis creating a taper.

Form Tool method:

The form tool method is used for producing external tapers only. The form tool method is a type of method in which the shape of the tool is the same as that of the shape of the component to be produced. Whatever the angle of the tool that can be produced on the component.

The accuracy produced on the component depends upon the accuracy present in the tool. It is mostly used in chamfering operations.

Shoulder Turning Operation:

Shoulder Turning is used in the case where several diameters are to be turned on the workpiece. The surface forming the step from one diameter to the other is called the shoulder.


There are four types of shoulders:

  1. Square
  2. Beveled
  3. Radius and
  4. Undercut.

A right-cut tool is used to make the square shoulder.

Facing operation:

Facing is a process in which the end of the workpiece is being machined by the tool which is at a right angle to the axis of the rotation of the workpiece.

Facing is frequently the first operation performed in the production of the workpiece and often the last. We can relate it to the phrase” ending-up”, which will help us in remembering its sequence.

facing operation

Thread-cutting operation:

Thread cutting is a type of operation in which the threads are cut on the internal and the outer surface of the workpiece as per the requirement.

thread cutting operation
Thread cutting operation

In the thread-cutting operation, only the automatic feed is given.

The automatic feed required for the thread-cutting operation is given by using a lead screw and the feed gearbox.

127 toothed gear is used for producing Metric threads on the engine Lathe.

The feed of the lead screw has to be changed in order to get the different pitches of thread on the job.

JOB SPEED: Job speed during threading is up to 1/4th of the job speed during turning.

Thread Cutting On Lathe Machine by Practical Guru

Parting Operation:

Parting is an operation in which the deep groves are being made on the parent material to remove the specific portion from the parent material resulting in dividing the workpiece into two or more parts.

Parting Operation
Parting Operation

Chamfering Operation:

Chamfering is the operation of beveling the extreme end of a workpiece. Chamfering is provided for:

  1. Better look.
  2. To enable the nut to pass freely on the threaded workpiece.
  3. Remove burrs and
  4. Protect the end of the workpiece from being damaged.

Chamfering is done usually after knurling, thread cutting, etc…

Chamfering Operation
Chamfering Operation

Knurling Operation:

The process of making the surface of the workpiece rough by embossing (impressing) a diamond-shaped regular pattern on the surface by making use of a knurling tool is called a knurling operation.

Knurling is done at a lower speed and plenty of oil is used. Knurling provides an effective gripping surface on a workpiece to prevent it from slipping when operated with a hand.

Knurling Operation
Knurling Operation

Drilling Operation:

Drilling operation is a type of machining operation that is used to remove the material from the workpiece by making use of a drill bit, which is held stationary in the Tailstock. Finally creating a hole in the workpiece.

Drill bits are generally made up of high-speed steels and carbon steels.

Drilling Operation
Drilling Operation

Boring Operation:

Boring is an internal turning operation used for enlarging the existing holes by some amount.

Boring Operation
Boring Operation

It can further be divided as:

Counter boring:

Contour boring is an internal turning operation used for enlarging the end of the holes.


Counter Sinking is the operation of the conical enlargement of the end of the hole. It requires a large size drill bit than that required for the hole.

Reaming Operation:

It is a machining process that is done after drilling to make internal holes of a very accurate diameter. This operation helps to remove a very small amount of material from the holes which are already drilled.

Reaming Operation
Reaming Operation

Lathe Machine Operation Video:

Video by MMMUT Gorakhpur

Now we will study the Specifications of the Lathe Machine,

Lathe Machine Specification:

In order to specify the lathe Machine completely the following parameter should be included:

  • The length between the two centers
  • Height of the center
  • Swing Diameter over the bed
  • Maximum bar diameter
  • Tailstock sleeve travel
  • Metric thread pitches
  • Leadscrew Pitch
  • Motor horsepower and RPM
  • Shipping dimension: (length x width x height x weight).
Lathe Machine Specification
Lathe Machine Specification

a) The length between the two centers:

It is the measure of the maximum length of the workpiece that can be fixed between the lathe center.

b) Height of the center:

The distance between the lathe axis and the lathe bed is called the height of the center.

c) Swing Diameter over the bed:

It is the maximum diameter of the workpiece that can be turned on a lathe without hitting the lathe bed.

d) Maximum bar diameter:

It is the maximum diameter of the workpiece that can be passed through the hole in the headstock.

Other factors for the lathe specification are:

  • Tailstock sleeve travel.
  • Metric thread pitches.
  • Leadscrew Pitch.
  • Motor horsepower and RPM.
  • Shipping dimension: (length x width x height x weight).

Application of Lathe Machine:

The following application of the Lathe Machine are:

  • Metalworking operations,
  • Metal spinning,
  • Thermal spraying,
  • In the automobile industry mainly in the crankshaft, woodturning, Glass turning operation, for forming screw threads, also used for reclamation of the parts, and many more.

A CNC lathe finds extensive use in the several tasks being performed by it in various industries like:

  • Textile
  • Power Generation
  • Defense
  • Medical
  • Plastic
  • Aerospace
  • Automotive
  • Automobile industries.

Advantages of the Lathe machine:

Lathe Machine has numerous advantages, some of them are:

  • The lathe is a High-quality product.
  • It has a high speed.
  • It also Saves time and
  • Saves Money

1. High-Quality Products:  Lathe machines, especially the CNC Lathe machine, produce final products with high quality.

2. High Speed: The machining in the lathe can be done at a very high speed, especially in automatic and CNC lathe machines.

3. Saves time: The lathe machine because of its extensive high speed and high accuracy saves a lot of time, resulting in increased production.

4. Saves Money: Lathe machine helps in reducing the cost of machining because fewer operators are required for machining.

Disadvantages of Lathe Machine:

Lathe Machine has some disadvantages too, some of them are:

  • The Initial cost is very high.
  • A highly skilled worker is required for the initial setup.
  • CNC machines can not use for small production.

This is all about the Definition, Introduction, Parts, Types, Applications, Advantages, Disadvantages, and [Notes with PDF] of the Lathe Machine.

Related Post:

NC Machine
Milling Machine
Drilling Machine
Shaper Machine
Planer Machine
Slotter Machine
Hot Working Process
Cold Working Process

If you really like the articles then do visit for other articles too. Thank you for your valuable time.

Print Friendly, PDF & Email

Er. Amrit Kumar

Amrit Kumar is a Mechanical Engineer and founder of I have done a Diploma and Engineering degree in Mechanical and writes content since 2016.

Recent Posts
